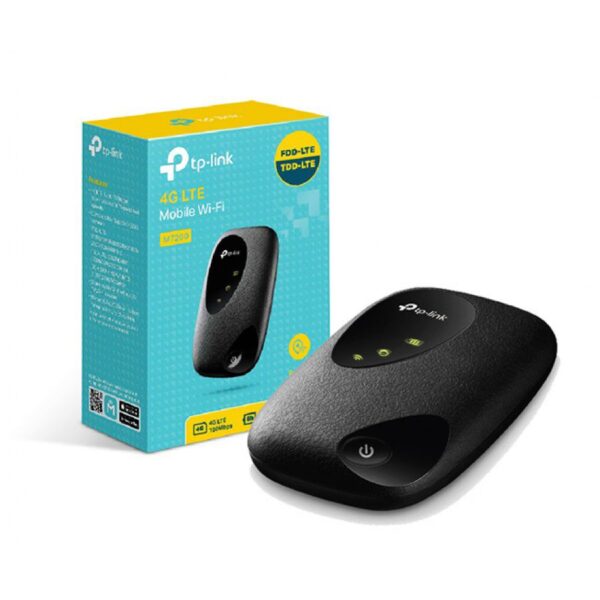

مودم Tp-link M7000
| HARDWARE FEATURES | |
|---|---|
| Interface | ۱ micro USB port for power supply ۱ Micro SIM card slot |
| Button | Power Button, Reset Button |
| Power Supply | Internal 2150 mAh Rechargeable Battery (TBL-65A2150) External 5V/1A |
| Network Type | ۴G: FDD-LTE B1/B3/B5/B7/B8/B20/B28 (۲۱۰۰/۱۸۰۰/۸۵۰/۲۶۰۰/۹۰۰/۸۰۰/۷۵۰ MHz) TDD-LTE B38/B40/B41 (۲۶۰۰/۲۳۰۰/۲۵۰۰ MHz)3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B5/B8 (۲۱۰۰/۸۵۰/۹۰۰ MHz) |
| Data Rates | DL: 150 Mbps, UL: 50 Mbps |
| Dimensions ( W x D x H ) | ۳.۷×۲.۲×۰.۸ in. (94×۵۶.۷×۱۹.۸ mm) |
| Antenna | Internal Antennas |
| LED Display | Wi-Fi status, Internet connection status, Battery status |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11b/g/n |
| Wireless Speeds | Up to 300 Mbps |
| Frequency | ۲.۴ GHz |
| Reception Sensitivity | ۱۱b 11Mbps: -87.5dBm; ۱۱g 54Mbps: -74dBm; ۱۱n HT20 MCS7: -70dBm; ۱۱n HT40 MCS7: -68dBm; |
| Transmit Power | <20dBm |
| Wireless Security | Support WPA-PSK/WPA2-PSK,Wireless MAC Filtering, Enable/Disable SSID Broadcast |
| DHCP | Server, Client, DHCP Client List |
| OTHERS | |
|---|---|
| RNDIS Support | Yes System Requirement: Windows XP/7/8/10/11 |
| Package Contents | Mobile Wi-Fi M7000 ۰.۴m Micro USB Cable ۲۱۵۰ mAh Battery Quick Installation Guide |
| System Requirements | Windows 11/10/8/7/vista/XP, Mac OS, Android, iOS, Windows Phone |
| Certifications | CE, RoHS |
| Environment | Operating Temperature: 0℃~۳۵℃ (۳۲℉ ~۹۵℉) Storage Temperature: -20℃~۶۰℃ (-۴℉ ~۱۴۰℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
